600mm extension cable terminated with four BNC connectors at the instrument end and a pair of large jawed Kelvin clips at the component end.
1EVA40180 Large Jaw Kelvin Clips have heavy-duty jaws allowing connections to components having large measurement terminals.
Frequency: 20 Hz to 3 MHz
All analyzers must have open-circuit and short-circuit trims performed before using Kelvin Clips. HF Compensation must also be performed if available.
Connection to Analyzer: 4-BNC 0.6 metre cable assembly
Connection to DUT: 4-terminal Kelvin Clips (defined by part number)

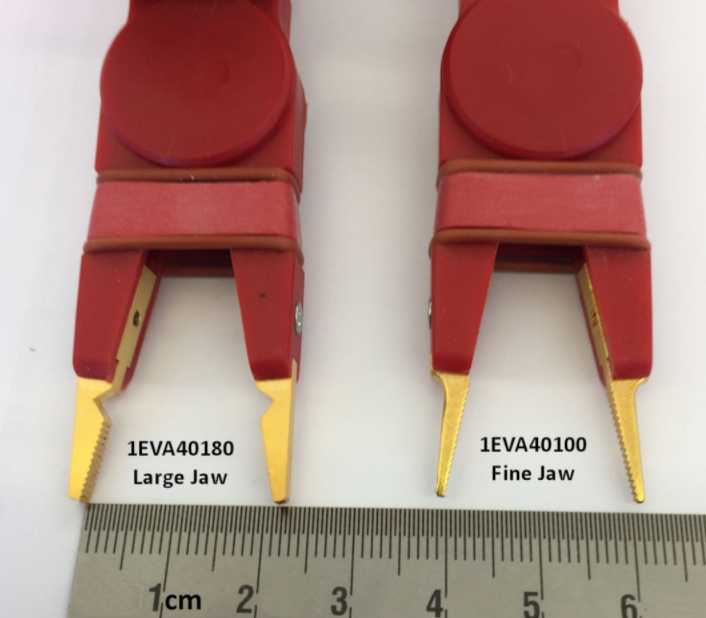

Maximum jaw opening:
